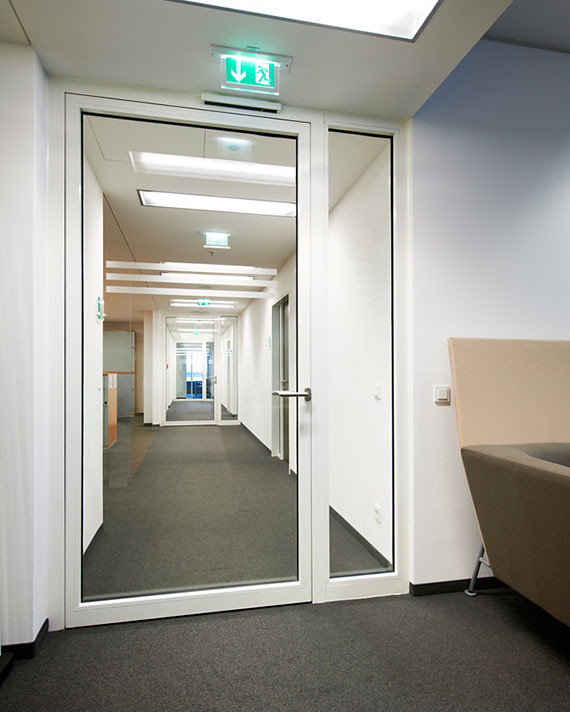

Certified according to law EN 1634, the innovative aspect of this glazed door is the combination of glass and blind partitions. Moreover the usage of aluminum for frame and leaf profiles.
Gallery / Inspiration
Technical Features:
Frame in aluminum, section mm. 90x75, frame rebated thickness mm. 20, with a reinforced profile for thermal insulation.
Tubular profile filled with a mineral refrigerating substance which turns into vapour with high temperature.
Leaf composed by tubular aluminum profile mm. 90x100, leaf rebated thickness mm. 20, realized as the frame.
Glass thickness mm. 25, inserted in the leaves, composed by float glass and special transparent gel that, in case of fire, becomes blind and gives out refreshing steam. Fixed by metal clips and aluminum glazing beads, inserted and aligned with the leaf profile.
On request blind panels can be installed, total thickness mm. 52. Composed by 2 steel sheets with insulating panel inside. The whole set is fixed by metal clips and aluminum glazing beads.
No. 2 aluminum hinges each leaf, equipped by central stainless steel pivot, fixed on the frame and leaf profile with metallic screws.
Standard equipment: black thermoexpanding gasket, fire proof lock, handles, security bolts, upper door closer, inside threshold.Glasses are only for inside usage.
