Track and hardware systems

Quality modular systems that are easy to install

Novoferm track systems are modular and assembled as far as possible in advance. The track systems are suitable for both and doors, and for Novolux XL.

Development and installation of the track systems and spring assemblies always focus on certified quality and durability.

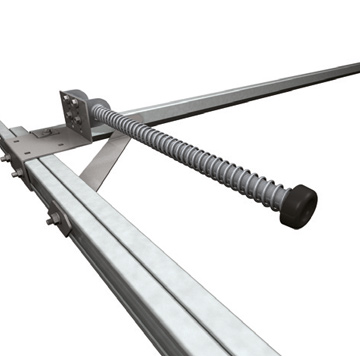

Spring buffer
The highly stressable spring buffer gives the horizontal door a brief shove to get it closing. The length of the spring buffer is dictated by the configuration of the door.

Floor fitting
The floor fitting connects the track properly to the floor. Together with the spacer, it ensures the right distance between the guides.

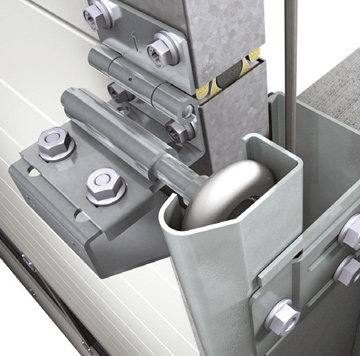

M8 screw connections
Metal hardware components are standard connected to the track profiles using M8 screws. Thanks to carefully pre-assembled components, fast installation is possible.

Carrying cable
Thanks to the modular structure of our track systems and hardware, we can always ascertain whether the carrying cable is correctly positioned relative to the vertical tracks, thus ensuring maximum safety and reliability.

Safety track
The safety track makes sure the rollers cannot slip out; the carrying cable is securely concealed by the track for added safety.

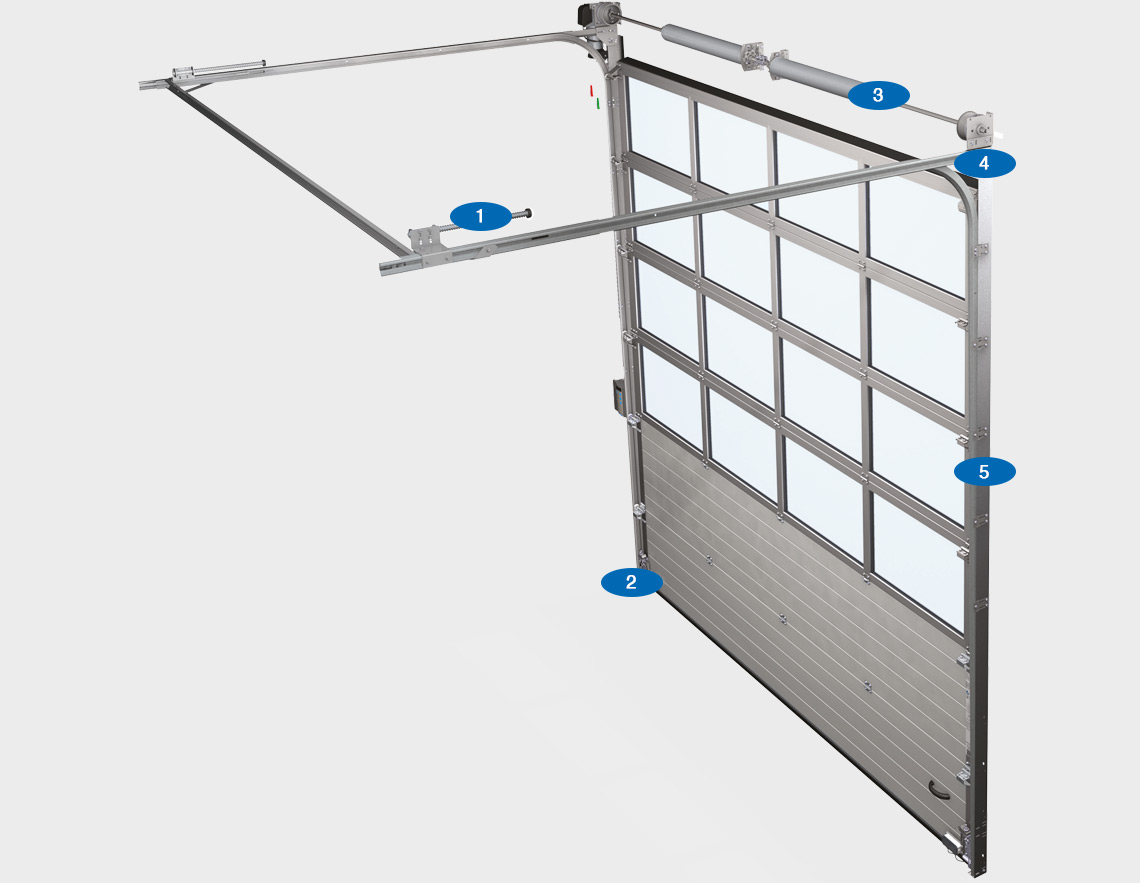

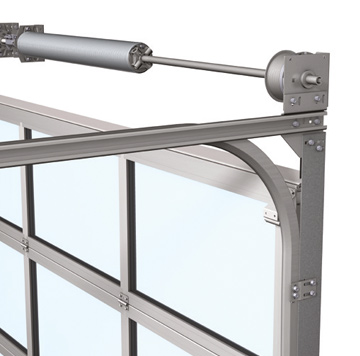

Track system: the details

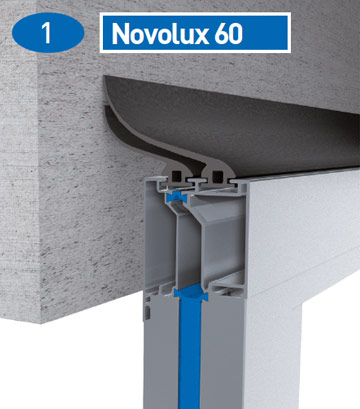

Top seal
The top panel on a NovoLux 40 doors is edged with rubber seal profiles for added insulation and best possible header seal integrity. No gaps, so no energy loss.

The top panel on a NovoLux 60 door is edged with double EPDM rubber seal profiles for added insulation and best possible header seal integrity. No gaps, so virtually no energy loss.

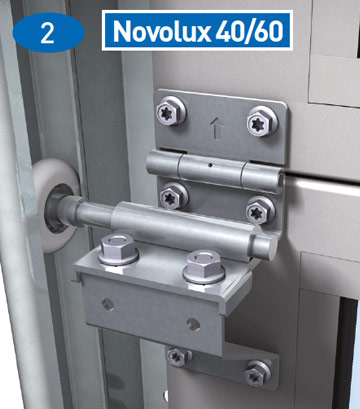

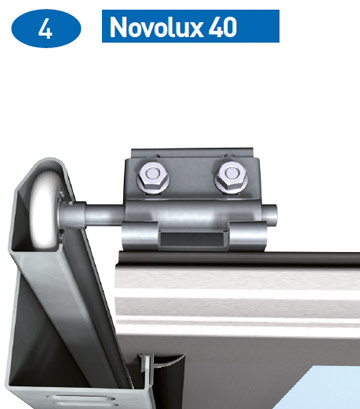

Sturdy side hinge
Novoferm uses single side hinges on doors up to a clear width of 5 metres. This highly stressable design guarantees the smooth running of the door, and good seal integrity.

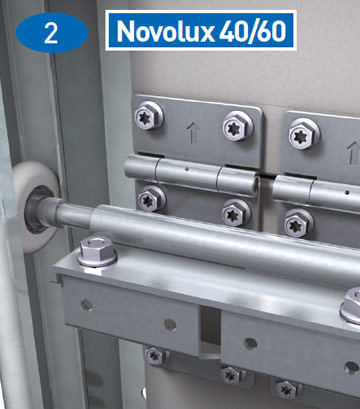

Double side hinge
Novoferm uses double side hinges on doors with a clear width of 5 metres or more to ensure that even heavier doors run smoothly.

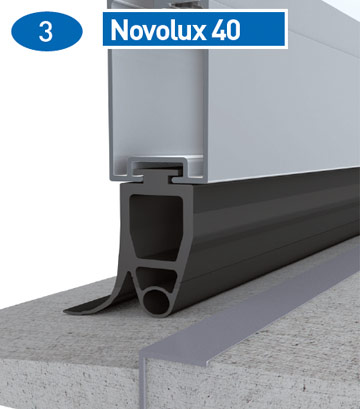

Floor seal
Novoferm uses rubber sealing profiles to optimize the floor seal. Together with an angle profile embedded by the service provider in the concrete, this design ensures that virtually no water can get in.

Novoferm uses double rubber sealing profiles to optimize the floor seal. Together with an angle profile embedded by the service provider in the concrete as a water stop, this design ensures that virtually no water can get in.

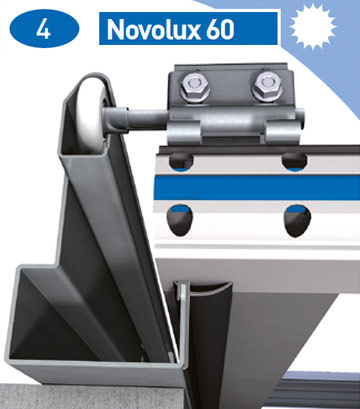

Heavy-duty corner frame
We use this frame on doors that are painted in a dark colour. Sunlight causes the door to expand, and it can push against the header in the middle. The steel corner door frame makes sure it doesn't.

Standard corner frame

Heavy-duty corner frame

Standard corner frame
A standard corner frame connects the door leaf to the vertical tracks, ensuring a stable and reliable seal between door side and building.

Track systems: overview

Novoferm track systems enable incorporation of the door in a building. Since installation is always dictated by the on-site conditions and architectural options, Novoferm offers a variety of tracks that can be made to suit any conceivable situation.

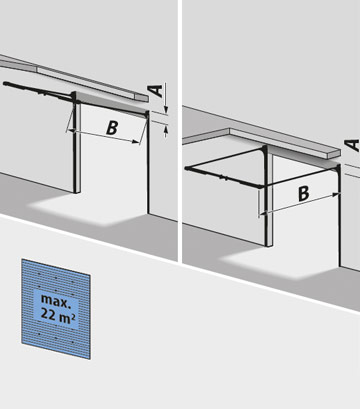

T 240 (B24)
Low header track system, incorporated wire cables + steel support profile
A = 240 mm,
B = Clear height + 1000 mm
Max. width: 6500 mm

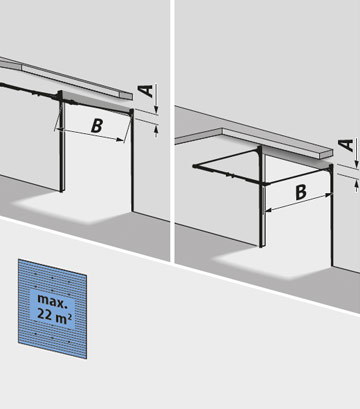

T 340 (B34)
Track system with normal guide, spring assembly at the rear + steel support profile
A = 340 mm,
B = Clear height + 750 mm
Max. width: 6500 mm

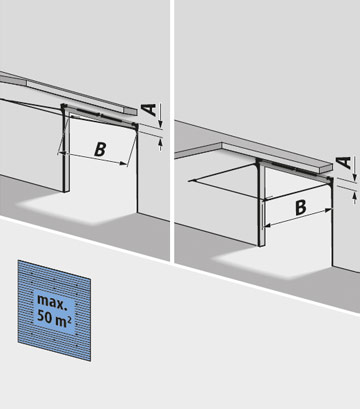

T 450 (B45)
Track system with normal guide (standard)
A = 430-510 mm,
B = Clear height + 650 mm

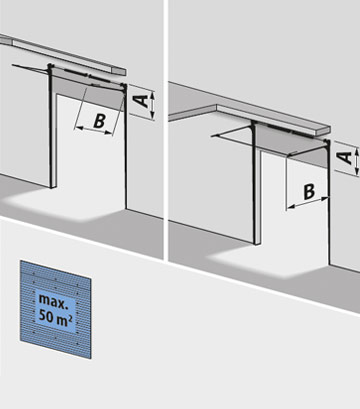

T 400 (B350)
Track system with elevated guide
A= Elevation + 400 mm,
B = Clear height – Elevation + 600 mm

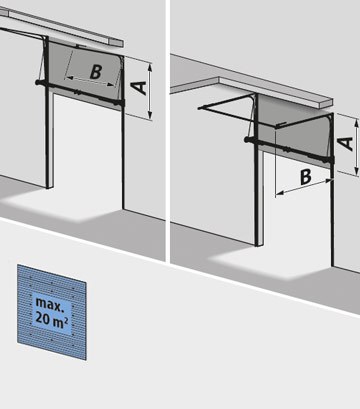

T 400 hF (B350)
Track system with elevated guide, spring shaft at the base + steel support profile
A = Elevation + 200 mm,
B = Clear height – Elevation + 600 mm
Max. width: 4500 mm
Hi-lift min. 1450 mm

T 400 DS (B350 dock)
Track system with vertical guide, spring shaft at the base
A = Clear height + 400 mm
Max. width: 3200 mm
Max. height: 3200 mm
Hi-lift min. 1700 mm

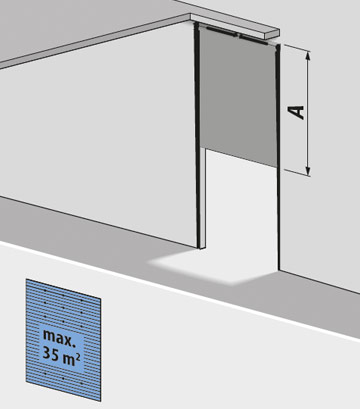

T 500 (B550)
Track system with vertical guide
A = Clear height + 560 mm

T 500 hF (B550)

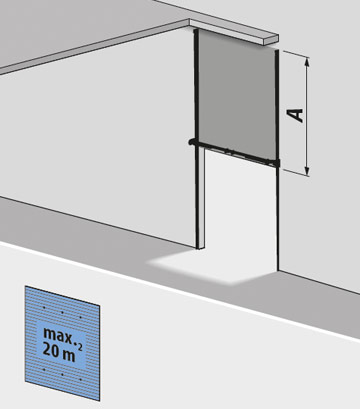

Track system with vertical guide, spring shaft at the base + steel support profile
A = Clear height + 400 mm
Max. width: 4500 mm

T 500 DS (B550 dock)
Track system with vertical guide, spring shaft at the base
A = Clear height + 400 mm
Max. width: 3200 mm
Max. height: 3200 mm
