Controllers and accessories for rapid roll doors

Choose between three Novoferm controllers suited for the various Novoferm rapid roll door types, together with numerous accessories and operators.

See for yourself!

CONTROL UNITS

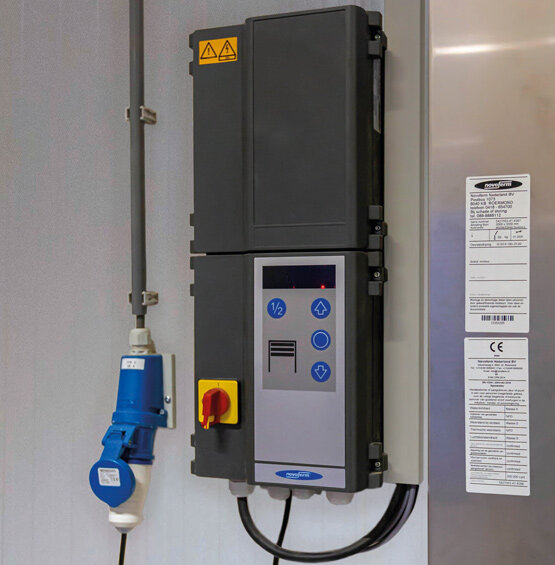

All Novoferm controls are fitted as standard with up-stop-down operation that can be set in several ways.

All operating options shown on the next page can be connected. There are also numerous extension and security options.

Novoferm doors are suitable for almost every situation.

CONTROL OPTIONS

All common types of operation can be connected to the Novoferm controllers. A small selection from the many possibilities is shown here. The SpeedRoller controls can be programmed in many different ways depending on the chosen version. For example, the speed, opening time, half-height stop etc. can be set according to your wishes.

Controlling traffic lights, lock control and many other options are possible. Another very important aspect is security. There are many safety features available to make your SpeedRollers work as efficiently and safely as possible in your situation. Would you like to discuss which options are most suitable for your situation?

Please contact one of our sales persons or ditributors in your area.

Übersicht Steuerungsmöglichkeiten

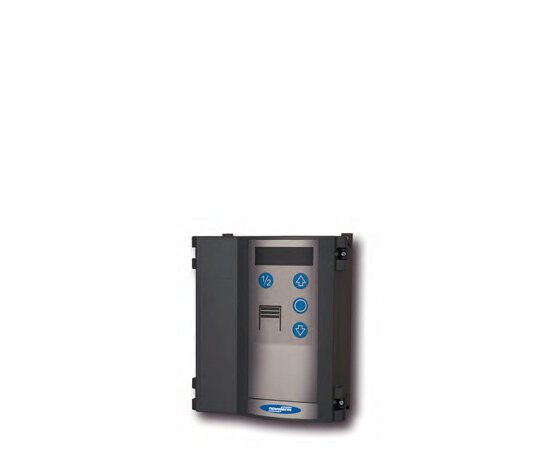

T100R

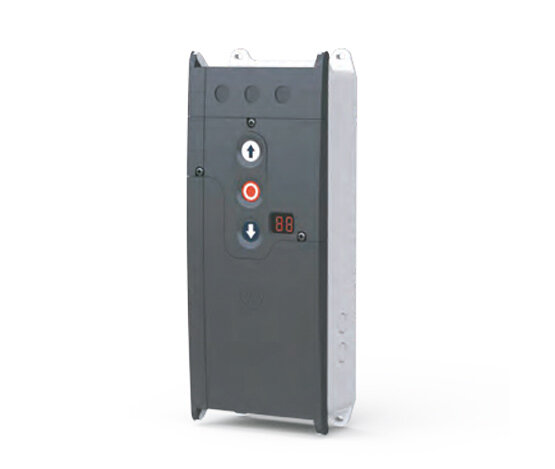

TS971 / TS981

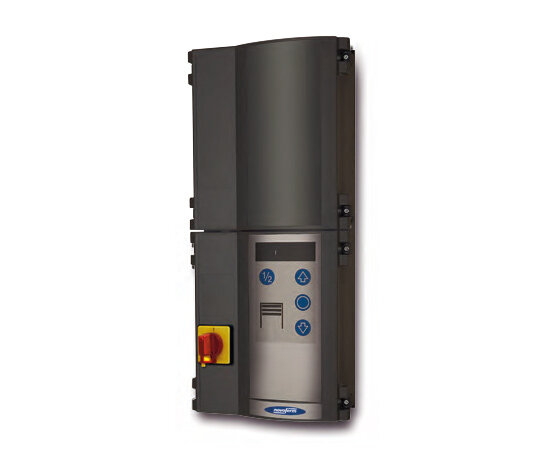

T100R FU

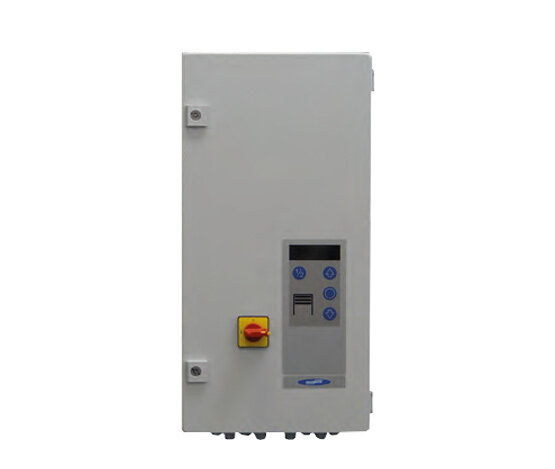

T100R FU, 3 kW

Technische Daten

	Control unit specifications	T100R	T100R FU 1,5 kW	T100R FU 3 kW	TS971 / TS981
Version	Plastic housing [IP54] 219 x 256 x 117 mm	●
	Plastic housing [IP54] met uitbreiding 219 x 550 x 117 mm	◊	●
	Plastic housing [IP65] 155 x 380 x 80 mm				●
	Steel housing [IP54] 300 x 600 x 160 mm			●

Connection	LNPE~230V/50Hz/16AT ± 10%, 3-pin CEE plug		●
	3N~400V/50Hz/16A ± 10%, 5-pin CEE plug	●		●	●
	DES pulse generator connection	●	●	●	●
	Two additional voltage-free relais	●	●	●	●

Operation	Push-buttons (membrane switches) open-stop-close	●	●	●	●
	External push-buttons (open-stop-close or timer))	◊	◊	◊	◊
	Remote control type Keeloq / Multibit (built in)	◊	◊	◊	◊
	ClearWave Switch panel, switches without touching	◊	◊	◊	◊
	Key switch you determine who is allowed to pass through	◊	◊	◊	◊
	Pull switch can be operated on foot or from a forklift truck	◊	◊	◊	◊
	Induction loop detector 2 channels (separate)	◊	◊	◊	◊
	IXIO S Infrarood detector voor binnen tot H = 3,5 m	◊	◊	◊	◊
	IXIO D Infrared & motion detector for indoors up to H = 3.5 m	◊	◊	◊	◊
	Radar indoor & outdoor motion detector up to H = 6 m	◊	◊	◊	◊
	Condor Infrared & movement detector indoors / outdoors to H = 6 m	◊	◊	◊	◊


Security	Safety light curtain protection of the entire doorway up to H = 2500m	◊	◊	◊	◊
	Safety photocell protecting the passageway at knee height	◊	◊	◊	◊
	Ixio D Infrared & movement detector for indoors up to H = 3.5 m	◊	◊	◊	◊
	Condor Infrared & movement detector indoors / outdoors to H = 6 m	◊	◊	◊	◊
	Traffic light red/green (extension A800)	◊	◊	◊	◊
	Flashing light	◊	◊	◊	◊
	Door position indicator	◊	◊	◊	◊
	Acoustic signal when closing (option)	◊	◊	◊	◊

Extras-	3 voltage-free relays	◊	◊	◊
	Two-way blocking function	◊	◊	◊	◊
	Interlock control				- / ◊
	Socket for induction loop detector (pre-wired)	●	●	●	●
	Mounting profile 2 x 70 mm			●

Control SpeedRoller	PRIME	●	◊
	Prime-XF		●
	Strong-E	●	◊
	Strong-FV	●	◊
	Strong	●	◊
	NovoZip		◊		●
	NovoSpeed Thermo				●
	Strong Outdoor			●
	NovoFold				●

● = standard ◊ = optional

Accessories and controls

OPERATION AND SAFETY

PUSH-BUTTONS | Operation

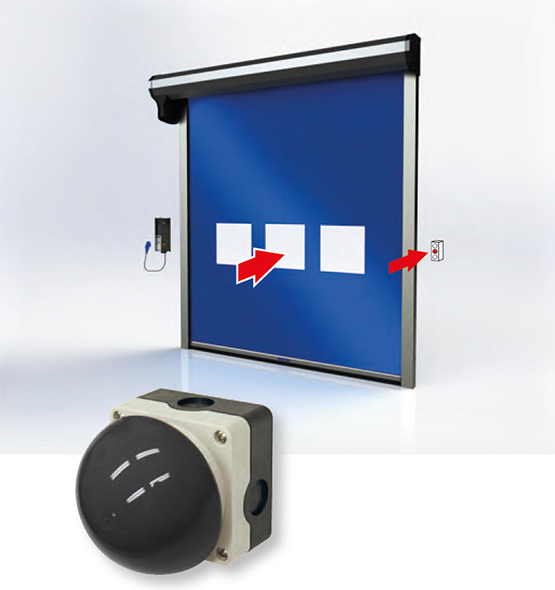

Pushbuttons are mainly used in personnel traffic. For situations where one‘s hands are not always free, a mushroom push button or a contactless ClearWave button is a solution.

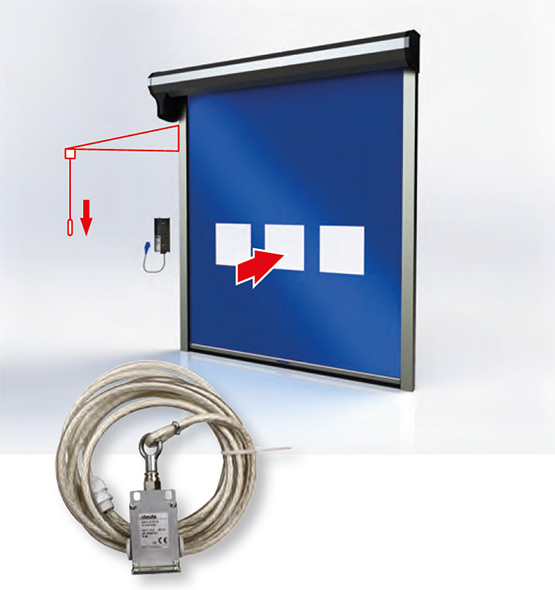

PULL SWITCH | Operation
The pull switch has a long cable hanging a few metres in front of the door. It can be operated on foot or from a forklift truck without the driver having to get out. Very efficient when there is a lot of forklift traffic.

REMOTE CONTROL | Operation

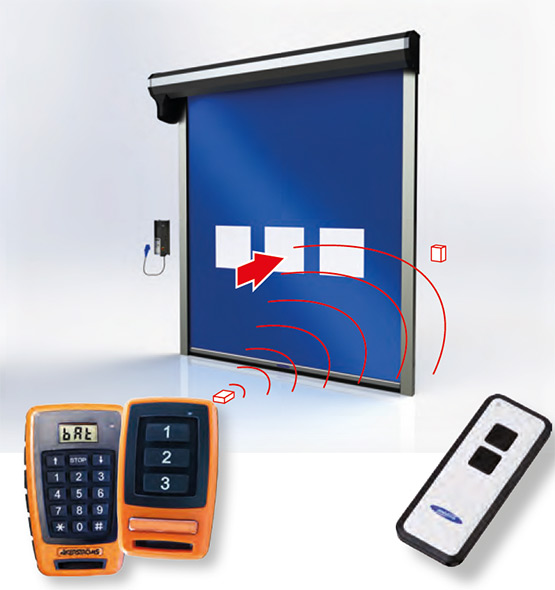

A remote control (with transmitter and receiver) offers the possibility of selective operation. Only those persons and vehicles that have a remote control can operate the door. Available with one or several channels.

CLEARWAVE | Operation
The ClearWave is similar to an ordinary push button, with the difference that it does not need to be actually touched. Ideal in food environments or clean rooms.

IXIO S | Operation and safety
The IXIO-S is a smart presence detector with active infrared technology. The three-dimensional infrared curtain protects persons from contact with the door. For indoor applications up to H = 3,500 mm.

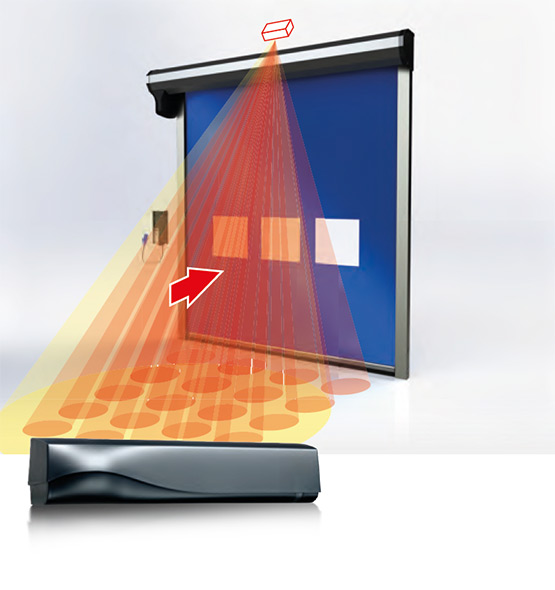

IXIO D | Operation and safety
The IXIO-D is a sensor that combines radar technology for opening the door with infrared technology for the protection of people against contact with the door. For indoor applications up to H = 3,500 mm.

INDUCTION LOOP | Operation / safety

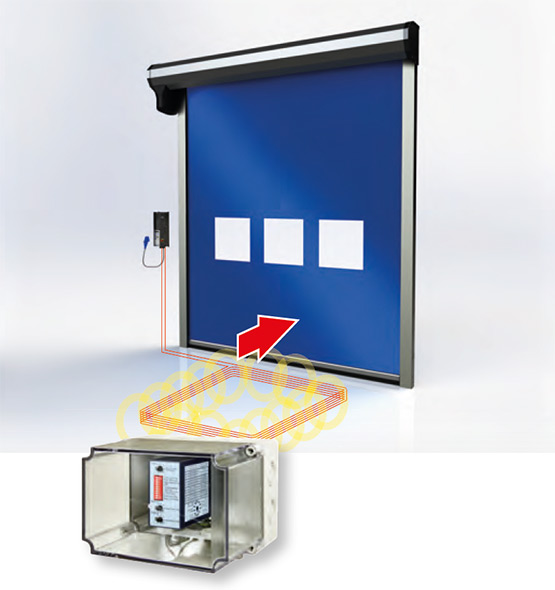

An induction loop detector produces a magnetic field. Every metal object within this field is detected. Suitable as a control, but also as an extra security in case of high speed forklift transport.

RADAR | Operation and safety
Radars can only detect moving objects. The radar has a conical detection area and is direction-sensitive. The size, direction and sensitivity of the radar field are adjustable. Also for outdoor use.

CONDOR | Operation and safety
The condor combines two functions in one device. The radar for detecting moving objects (operation) and an active infrared for detecting stationary objects (safety). Also suitable for outdoor use.

PHOTOCELL | Operation and safety
Photocells are mainly used to monitor the door opening. The door will not close when the photocell beam is interrupted. Designs with a reflector and with a transmitter and receiver are available.

LIGHT CURTAIN | Safety

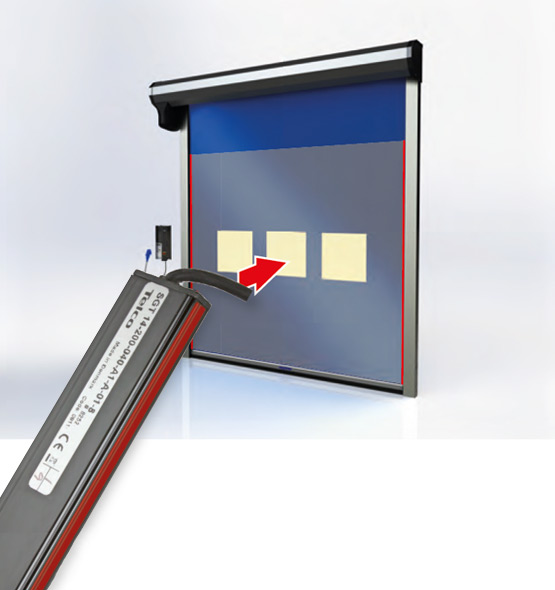

A light curtain has a larger detection range and thus provides greater safety than a photocell. This form of detection is particularly suitable for a wide range of transport sizes.

LZR LASERSCANNER | Safety

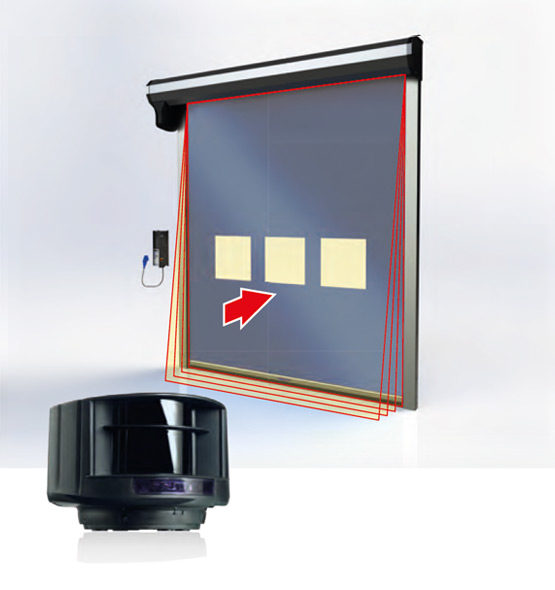

Der LZR^®-I100 / I110 features highprecision technology: the dynamic direction of the laser beams on four levels provides optimum protection of the door threshold and surroundings. Maximum detection area 9.9 m x 9.9 m..
