Novomatic design operators

Innovative operators

Advanced technology belongs in a modern casing. Our innovative operators are trendy and stylish with increased push/pull force. Innovative Novoferm garage door operators combine cutting-edge technology with the highest level of energy efficiency. Their impressive features include an optimized design, state-of-the-art LED technology, stability and enhanced performance.

In conjunction with a sectional garage door, most of our innovative garage door operators can be operated using Novoferm's "smartGarage" mobility app, which you can download free of charge from the App Store or Google Play.

Novomatic 423 design operator

The single garage solution

Advanced technology belongs in a modern casing. Novomatic 423 is trendy and stylish. It is the professional system for operating sectional and up-and-over garage doors. This garage door operator is a particularly good match for Novoferm garage doors, but is also perfect for retrofitting other garage door makes.

Your advantages at a glance

Modern, energy-saving LED lighting (1.6 W)
Low power consumption in standby mode (0.5 W)
Connection for outdoor lighting up to 500 W
Premium quality backed up by our 5-year warranty*
(on all mechanical, motor and motor control components)
Soft start and soft stop function
Self-monitoring automatic cut-off and electronically monitored push-up safeguard
The remote control unit has automatic signal encryption to ensure the utmost protection against manipulation
Air vent settings for garage ventilation
Easy to operate, with user-friendly menu
smartGarage mobility app for controlling sectional garage doors

Novomatic 423: the details

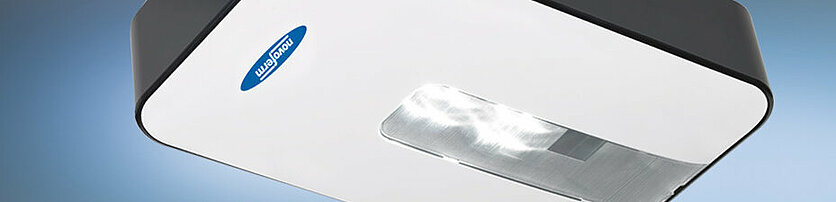

Why LED?

Particularly bright
Particularly cost efficient
Particularly efficient

Particularly bright: 13 times brighter than conventional bulbs of identical watt strength
Particularly cost efficient: Extremely long lasting, virtually unlimited service life
Particularly efficient: Minimizes energy consumptionli>

Hardware

Menu-guided programming
Programming is convenient and easy with three keys and a clear display. And the logical menu guide ensures that no settings are overlooked in the process. All the parameters are saved, even in case of a power cut. The operating state is always recognizable through the transparent cover. Clear error coding allows for quick and safe troubleshooting if required.

Track
The track has high bending and torsion stability. The deflectors are mounted on bearings, which ensures extremely quiet operation. A maintenance-free belt is pre-assembled in the track at the factory.

LED lighting and connections for accessories
The operating element is fitted with a modern, durable and energy-saving LED light. The connections for wired accessories can be easily reached and remote-controlled accessories can also be used. In addition, the Novoferm WiFi module can be connected to enable use of the "smartGarage" mobility app.

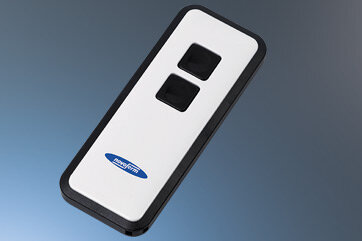

Remote control included in the standard scope of supply
The standard scope of supply includes a 2-channel Mini-Novotron 522 remote control

Air vent settings for garage ventilation
The door is opened about 10 cm to air the garage. Pulse triggering the second key on the remote control using a smartphone or any other pulse generator moves the door from wherever it is to the ventilation position. After 60 minutes it closes automatically unless closed by remote control beforehand.

The key data at a glance

Operator type	Novomatic 423
Push and pull	600 N
Running speed	15 cm/s
Maximum door surface	10 m²
Operation/day (open/close)	15
Stand-by consumption	< 0.5 W
Integrated LED lighting	1.6 W

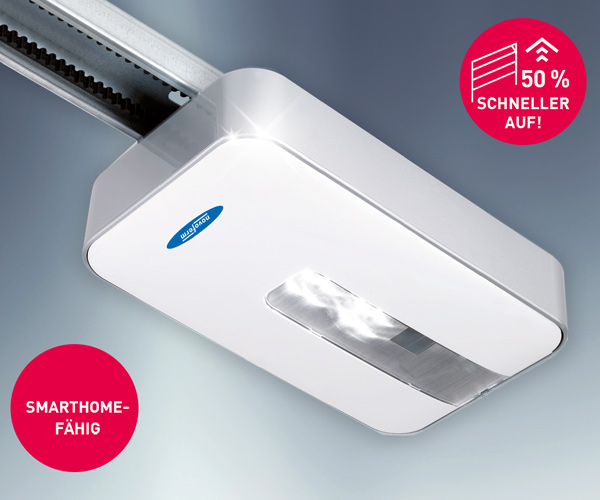

Novomatic 563 S design operator

The solution for single and double garages

Modern design and high-quality technology make the Novomatic 563 S a superior and modern high-tech operator system. Well-engineered technical features, such as doors that open up to 50% faster thanks to the integrated quick-acting function and integrated energy-saving LED lighting (1.6 W), ensure outstanding convenience and energy efficiency.

Your advantages at a glance

Easy to operate with the tamper-proof rolling code remote control (KeeLoq)
Soft start and soft stop function for quiet door operation
Integrated automatic cut-off stops the door reliably if something gets in its way
Electronically monitored push-up safeguard
Programmable interior lighting (60-240 seconds)
Directly connectable outside lighting up to 500 W
Manual quick release mechanism in case of power cuts
Easy and fast to install thanks to standard hardware for up-and-over and sectional garage doors
Saves energy, using just 0.5 W in standby
Five-year manufacturer's warranty on all mechanical, motor and motor control components
smartGarage mobility app for controlling sectional garage doors

Novomatic 563 S: the details

Why LED?

Particularly bright
Particularly cost efficient
Particularly efficient

Particularly bright: 13 times brighter than conventional bulbs of identical watt strength
Particularly cost efficient: Extremely long lasting, virtually unlimited service life
Particularly efficient: Minimizes energy consumption

Hardware

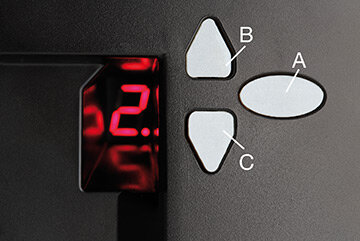

Menu-guided programming
Control is programmed easily with the logically structured menu. Key A loads the menu, the digits indicate the menu step. When the display flashes, press keys B and C to change the setting. Press key A to save the set value and automatically jump to the next menu step. This ensures that no settings are forgotten during programming.

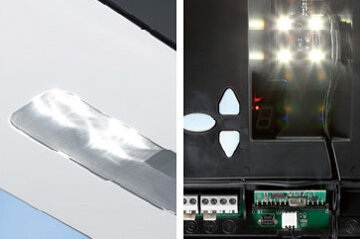

LED lighting and connections for accessories
Control is programmed easily with the logically structured menu. Key A loads the menu, the digits indicate the menu step. When the display flashes, press keys B and C to change the setting. Press key A to save the set value and automatically jump to the next menu step. This ensures that no settings are forgotten during programming.

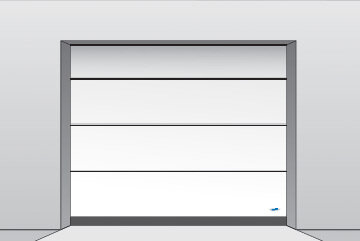

Air vent settings for garage ventilation
The door is opened about 10 cm to air the garage. Triggering a pulse can move it from any position to the air vent setting. After 60 minutes it closes automatically unless closed by remote control beforehand.

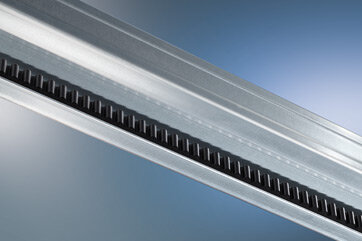

Track
The track has high bending and torsion stability. The deflectors are mounted on bearings, which ensures extremely quiet operation. The track is pre-assembled at the factory with a maintenance-free belt that is resistant to oil and acid.

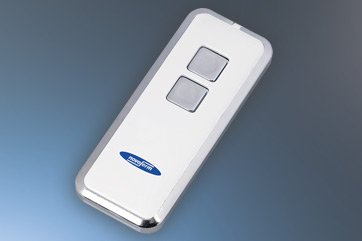

Remote control included in the standard scope of supply
The standard scope of supply includes a 2-channel Mini-Novotron 522 Design remote control

The key data at a glance

Operator type	Novomatic 563 S
Push and pull	800 N
Running speed (open/close)	22/17 cm/s
Maximum door surface	15 m²
Operation/day (open/close)	25*
Stand-by consumption	< 0.5 W
Integrated LED lighting	1.6 W
